この組み立てで時間をかけるなら、
もっと簡単に組み立てられるプリンタを選んだほうが良い。
また問い合わせをしても催促しないとスルーされる。
その後も結局スルー。
どうせ組み立てるならサポートがきちんとしたメーカーがいいと思う。

This is the first xy core 3D printer I have owned and the third 3D printer overall. My other printers are a Turnigy Mini Fabrikator V1, and a Tronxy 802MA

I decided I wanted a larger build volume than the 802MA and considered building a new printer from scratch, but learned about the X5SA from the Tronxy Facebook page and decided to try it out.

The printer was well packaged. Assembly time was about 5 hrs from opening the box to starting the first print. For the most part, the instructions were clear and easy to understand.
One issue I ran into was that the instructions show the rubber feet fully assembled and ready to install. The feet on my printer were not assembled, nor was there a hole in the base for the screw. It was pretty easy to figure out so I was able to move forward.
Another area that could be a bit clearer in the instructions would be to point out that the aluminum extrusions will only allow the screws to seat fully in the groove from one side, the screws sit on top of the rails if the extrusions are positioned incorrectly.

Assembly tools are included (screwdriver, wrench, and Allen wrenches). I would recommend using a small carpenter’s square or a roofing square and check the squareness of the frame many times during assembly. If the frame is not square and plumb, it will be very difficult to print with any accuracy and the error will get larger as the part size increases.

The fact that the wiring is already connected to the main board and routed through cable guides made the electrical installation fast and easy. All of the connectors are labeled so this step is simply a matter of plug and play.

The color control panel is bright and clear although the text is a little on the small size. The setup procedure in the instruction manual is easy to understand and the most difficult part is the initial auto leveling setup.

Auto leveling requires that the maximum difference between any two of the twelve reference points be less than 0.8 mm. This is accomplished by running the auto level procedure and then making adjustments to the bed level thumb wheels and running the procedure again until all of the measurements meet the 0.8 mm criteria.

Once the bed is leveled, it is time to print. For the first print, I used the 20 mm calibration file and the short length of PLA included with the printer. The calibration was very close on my printer out of the box. The 20 x 20 x 20 mm calibration part measured 20.2 x 20.1 x 19.7 mm, roughly 2% error. I still need to verify repeatability and do the fine calibration on each axis, but I am pretty happy with it at this point.

Other reviewers have said that this is not a good first 3D printer, but I’m not sure I agree completely with this assessment.
If you are a detail oriented person and take your time, this could be a good first printer. I would recommend this printer.

大きなものが印刷したかったで2台目のプリンターとして購入しました。

オートレベリングの調整に失敗して、ビルドプレートをいきなり傷つけるという大失態はあったものの、現在は問題なく印刷できています。ラフトの上に印刷してるので傷もつきませんし。

よかった点
・オートレベリングは設定がむずかしかったが、一度設定できれば便利
・大きいことは良いことだ。

困った点
・日本語情報が少ない
1号機ENDER-3はネットにさまざまな情報がありましたが、こちらの機種は日本語の情報がかなり少なめ。とはいえオフィシャルの組み立て動画を見ながら5〜6時間で組み上げました。ENDER-3の組み立て経験がなければ、心が折れてたかも。
オートレベリングの調整の情報は全く見つけられなかったので、センサーの高さ調整とZ軸調整を根気よくやりました。

・プリントサイズは公称より少し小さめ
330×330はテーブルの大きさ。ビルドシートなどをクリップで挟んでると少し小さくなります。

・純正の消耗品が売ってない？
ノズルやビルドシートなど、純正品を売っておいて欲しい。

工夫した点
テフロンチューブが商品写真のように上手いこと上向いてたわまないので、ホームセンター金具で支柱をつくりました。

The printer came in a fairly large box that weight in the neighborhood of 30 lbs. I opened it and was pleasantly surprised in the way everything was packaged. Wow, TronXY went to a lot of trouble to keep everything separated and easy to find.
I laid everything out in their own groups, the beautifully painted frame, Z carriage pieces, gantry and hotend, power supplies, switches, a USB stick with a Micro SD card inserted, etc.
I found beautifully illustrated manual inside the box with step by step instructions, which I opened and got ready to assemble the frame. Everything is laid out in millimeters and, other than my calipers, all my measuring tools are in inches, so I had to do a lot of translating to inches to make sure I got the right pieces in the right place. When I tried to find the long parts of the frame I panicked because none of the 2020 or 2040 parts were anywhere near the length of the frame shown in the printed manual!
I finally plugged the USB drive into my laptop and opened the manual on there. FANTASTIC!! This manual had the right dimensions for MY machine. I have to believe the printed manual was for either the 400 X 400 or 500 X 500 models instead of my 330 X 330. In about an hour I was able to assemble the frame and put on the XY gantry and hotend. Be sure to slide the feet out as far as possible toward the end of the 2020 because you'll need the space to get the power supply and main board mounted when that step comes up.
XY motors were easy to figure out. Z wasn't too difficult but be aware that you will need to move the carriage to the top with the screws and snug it up, move it down a little and tighten it. If you don't do this, you'll wind up with the top bearing in the wrong place and the Z screw will be out of line, putting the Z carriage in a bind and adding extra work onto the Z motors, possibly even burning out a driver.
After mounting the heated bed, installing limit switches and wiring everything up, I was ready to try it out.
First thing I noticed was that the cable chain connection is very weak where it connects at the back. It kept coming loose and I finally had to print a support bracket for it on my other printer.
I started it and homed it, then ran the leveling routine. Wow, the machine does 16 points on the bed and does it quickly. I was worried that it did it so fast, so I ran it a second time and compared the numbers. Almost identical! NICE!!
Overall, I love this printer. I've added corner brackets for stiffness and I put OctoPrint on it but otherwise I've not changed it. I will print with it for a while and see how well it prints.

Muy conforme con el producto. Exelente relación calidad precio

The frame is straight and tough enough. After the assembly, there are many parts about the stock. Of the minuses-bad bearings of rollers, on which the belt goes, rotate smoothly. The same bearings in the rollers on which the carriage rolls on the frame are excellent.

First it was nice to see a lot of the bits preassembled. The printer went together very quickly, a couple hours ( I have built these before ). The only assembly issue I had were the vertical linear rails and how they mount. The instruction say to place a spacer ( washer ) on the top of the rail, problem is it doesn't fit. After looking a bit, I realized the rail is supposed to slide into the hole in the Z-Axis stepper motor mount. Problem is the paint in the hole keeps that from working. I cleaned out the hole, now the bottom screw will pull the rod down so I could fit the washer, then, I loosened the screw on the bottom so I could tighten the top ( let the rail slide back up ), finish off by snugging down the bottom screw. Do not over tighten this because you will pull the rail down, bowing it. This will be apparent when you do the auto bed leveling.

That was long winded for the only assembly issue I had, hope it helps others.

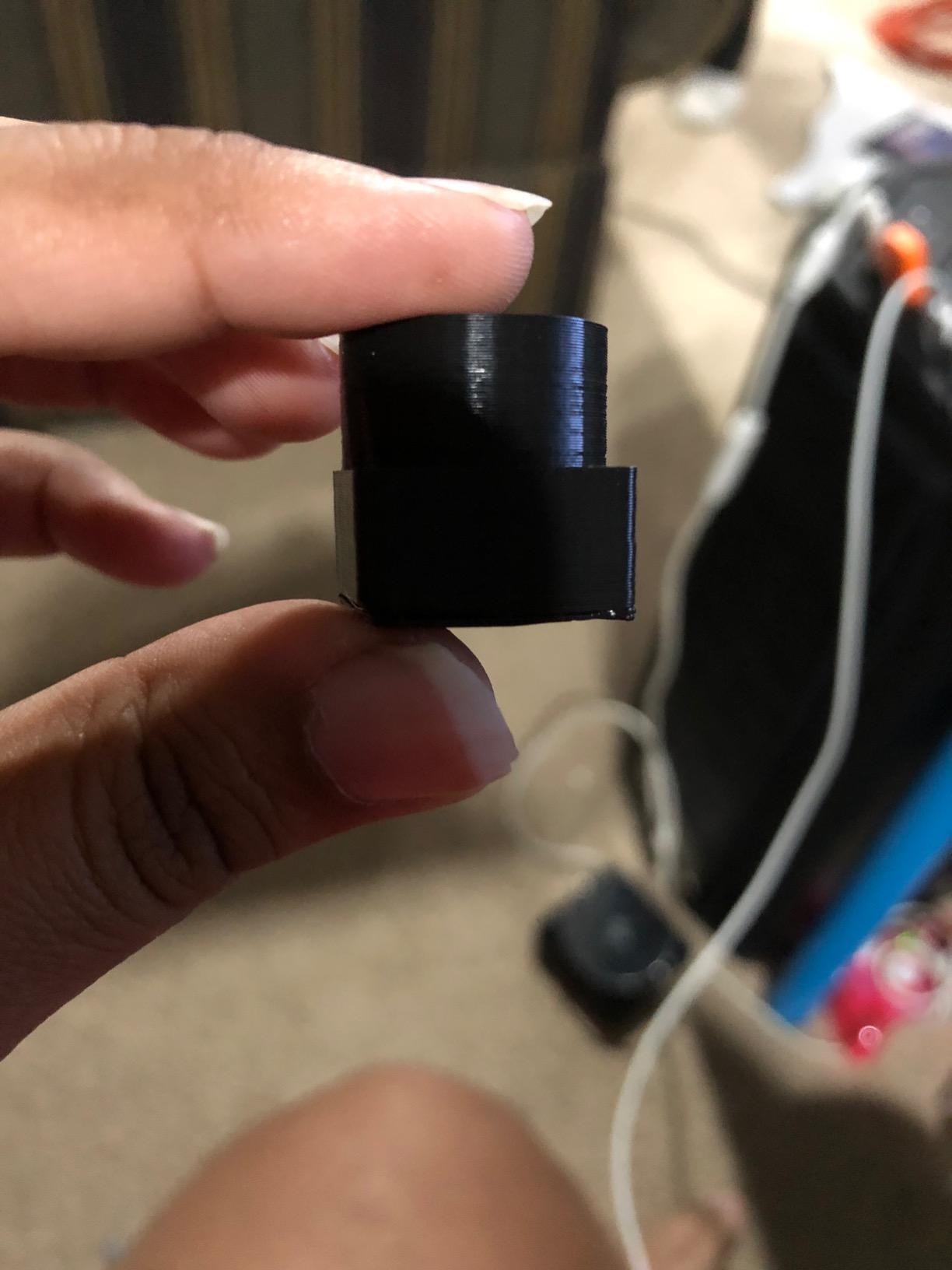

operationally the printer works very well. I wish it had open firmware but whats there is not terrible. It can be changed but will take some work. From a stock perspective, it all works fine. I printed the sample cube/cylinder demo and saw no bad behavior in the print.

I did not use the included slicers, I use Simplify3D and it worked with no issues.

So ends up I will give this one to my grandkids and build the pro version to keep for myself.

Things to keep in mind, if you have never built a printer before, this kit is probably not for you.

I got the kit last Monday and it was packaged really well and neatly amongst styrofoam sheets. There is an instructions manual, and its pretty decent quality. It goes through your parts list, how to get started, along with color coding what is being used on the current step. It can get a bit busy as you're progressing through, so I would also recommend going to YT and watching the video TRONXY has on this printer.
A couple things come preassembled like the motors, the hot end, rollers, and control box for the X-Axis, Extruder, and Filament sensor. Power supply and control board are preassembled as well, so the electronics are essentially plug n play.

One of my idlers for the gantry came chipped (see 3rd picture) and I was able to reach out to TRONXY's support and they are sending me a new idler. However, this is not the only OC issue I've run into. The timing belts were twisted and would not tighten, so I did have to replace them. So far the movement on the X and Y axis has been pretty stable, with a few hiccups here and there.

Z-Axis has been a hassle, while both motors are running at the same time and thankfully at the same rate. When trying to home however, the Z axis keeps moving up and thus colliding with the hotend assembly, making a god awful sound and time for everyone involved. That said, this is likely more like Operator error than it is anything on the printer's part as this is my first CoreXY style printer build.

Update 11/13 —This was entirely operator error. I did not loosen the x carriage, which caused the belts to loosen which in turn caused the printer to be unable to accurately place the x assembly where it needed to be to move. Once it was properly adjusted, I was able to print the calibration model that came on the sd card and while I did have a couple of bottom layer issues, the rest of the model printer fine.

I would definitely recommend this printer to other intermediate hobbyists, but not to beginners. I've had several 3d printers now and feel comfortable enough to be able to build one of these and get it up and running in no time, even if I have to trouble shoot for a while. That said, the instructions manual does come with some basic trouble shooting help. If that doesn't solve your issue, you could always reach out to TRONXY's support team who are super friendly and will respond within 24 hrs, not including when they have holidays.

I love this printed. I am a first time 3d printer person and with a little research I have managed to get some surprisingly good quality prints out of this printer. Further I plan on getting a glass plate which I found was highly recommended for 3d printers in general and I think it will also help with the quality. Amazing printer for the price.

Amazing price for a Large core XY printer! Setup is straightforward if you’ve built an ender 3 or similar printer. The updated 24v printer addresses almost every complaint the 12v x5sa has, they really listened to their reviews. TONS of extra hardware, but still missing the wrench for M3 nuts

ABL is working great so far with Z offset adjusted

You may need to team/drill 8mm holes for paint leftover on the z rods , upgrade to metal z rod bearing over plastic would be nice

Precision hex drivers are a lifesaver with this many screws for assembly

Silicone extrusion covers are excellent for cable management, cut off 1 inch strips and put over cables in the aluminum extrusion slots

My first printer was an Anet A8 it took 5 hours to build. this Tronxy x5sa only took 2. it was easier to understand the instructions, quicker to build because it is partially assembled. after the bed leveling and setting the Z offset and adjusting the auto bed sensor it has been printing great with no issues. I changed the print surface to PEI because it was a bit difficult to remove prints off the stock print surface. I plan to change out the fan on the cpu because it is crazy loud. so far this is by far my favorite printer beating out my ender 3 for ease of use, especially bed leveling and print volume. I look forward to a very large print now that I've got it dialed in. as with any printer bed leveling and z offset is one of the most important parts of initial set up so take your time and be sure to do it right. I missed saving the z offset by touching the set z as 0 button and it dug into the bed surface so be careful to save the z offset.

組み立てキットなのですが、英文の説明書で図がわかりやすく、3時間ほどで完成！
そこから、操作方法を試し、調整、テストプリントで2時間で出来ました。
なかなか、良さそうな感じです。また、しばらく使い込んだら、レビューします。

The assemble time for me was about 8 hour it comes with decent instructions with picture but they also have a great YouTube video that I used to assemble the printer. I also like the removable metal print bed so far after 3 prints I have not need any glue or hair spray. With the bed only moving in z I'm able to get quality prints running at 60mm/s. The one down side I didn't expect was that you have to set the z offset every time you shut the printer off other than that it's as good as I expected. And the service provided by tronxy is excellent they are. Willing to help with any problems you have after purchase.

Muy buen artículo, fácil de armar

This printer is not for beginners. Baught this for my mother as she was so interested in the projects I've been doing with my hoard of printers. This kit required lots of adjusting and came with very little literature. Not a whole bunch online about this specific model. I had to open the access to the board and adjust the potentiometer for extruder motor voltage adjustment as it was set super low. This is by far more then a normal person could troubleshoot. More ease of use needs to come out of the factory before this can be considered consumer friendly. All in all after hours of tinkering and researching what I could I was able to get it working and my mother is able to print things on her own with it.

3Dプリンターの師匠と思っている方が購入されていたのでマネして購入してみました！
注文の翌日に届きました。
プリンターは2台目で、組み立て品は初めてなのですが、休み休み5時間程で組み立て、動作確認まで出来ました。
取説は英語のみでしたが、絵が沢山で、ポイントも分かりやすく悩むことはありませんでした。
組み立て用のネジ類はかなり余計に入っていて安心できました。
少し高かったですが、10%値引きで、この造形の大きさ、z軸センサー、カラーのタッチ液晶、停電復帰などの機能を考えるとむしろ安いのかも知れません。

Awesome printer, although many of the components need to be assembled by myself, but with the installed video, my son and I assembled the video step by step, and our heart is full of accomplishments. After assembling, I tried to first printing and I printed a little dog with TPU filament. Very soft and my son love it.

 I’ve had some amazing prints! My first printer was damaged badly and I had to replace is so I decided to spend the extra $20 for this one and man am I happy I did! It’s made of aluminum and since there aren’t any rods, I don’t have to worry about them warping. No bearings to wear out from the bushings which is what caused my original one to get damaged. The filament sensor has saved me a few times! This alone is worth the extra cost I spent! I loved it so much I bought a second one!

good for start 3d printing things and learn, budget friendly, easy to assemble

This printer works great. It works. As good or better. Then. The more expensive printer we used ... for the price you can’t beat it
